Agriseeder™
Folding
140-250+HP
Power Required
32-48
Coulters
125mm
Row Width
4m-6m
Chasis Width
Menu

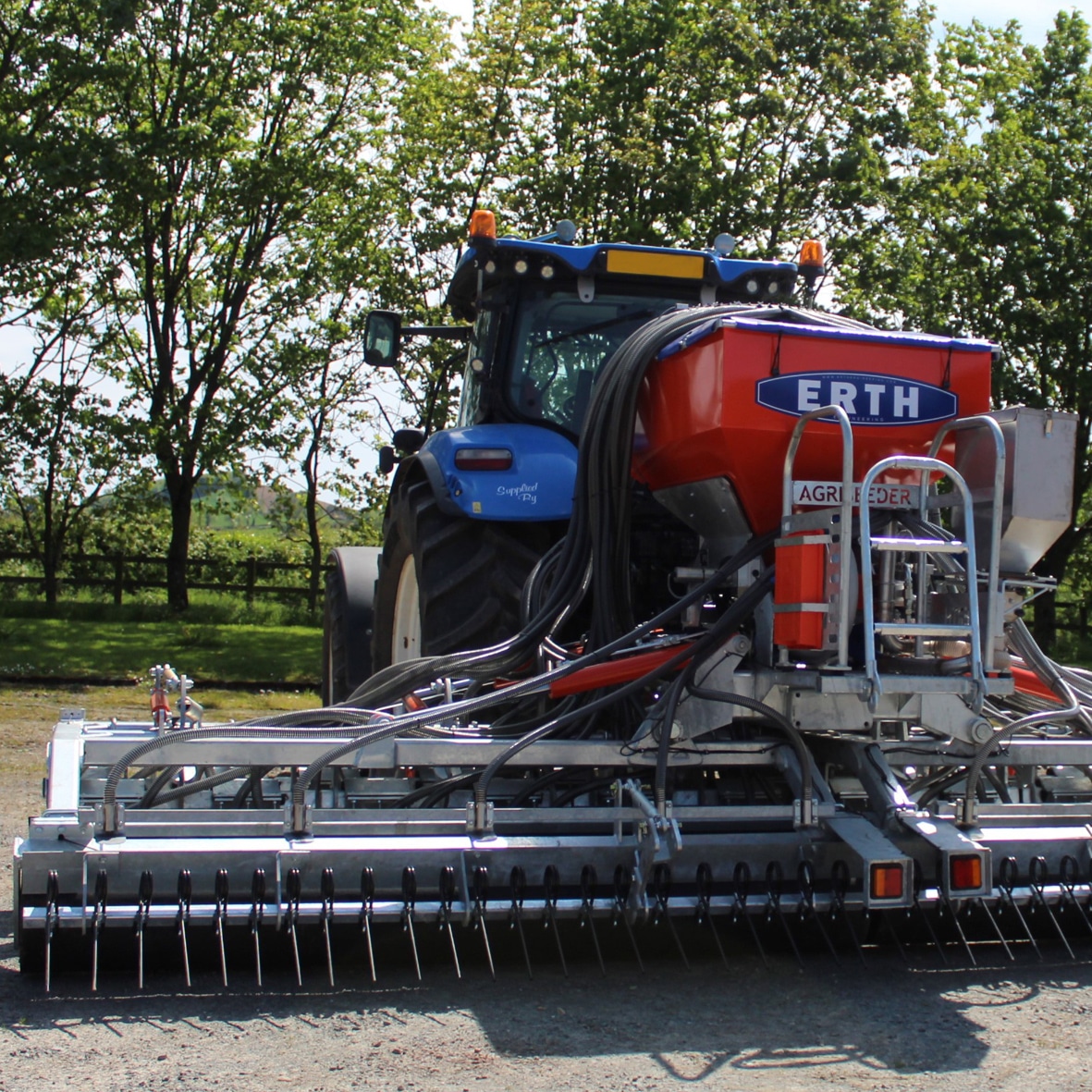

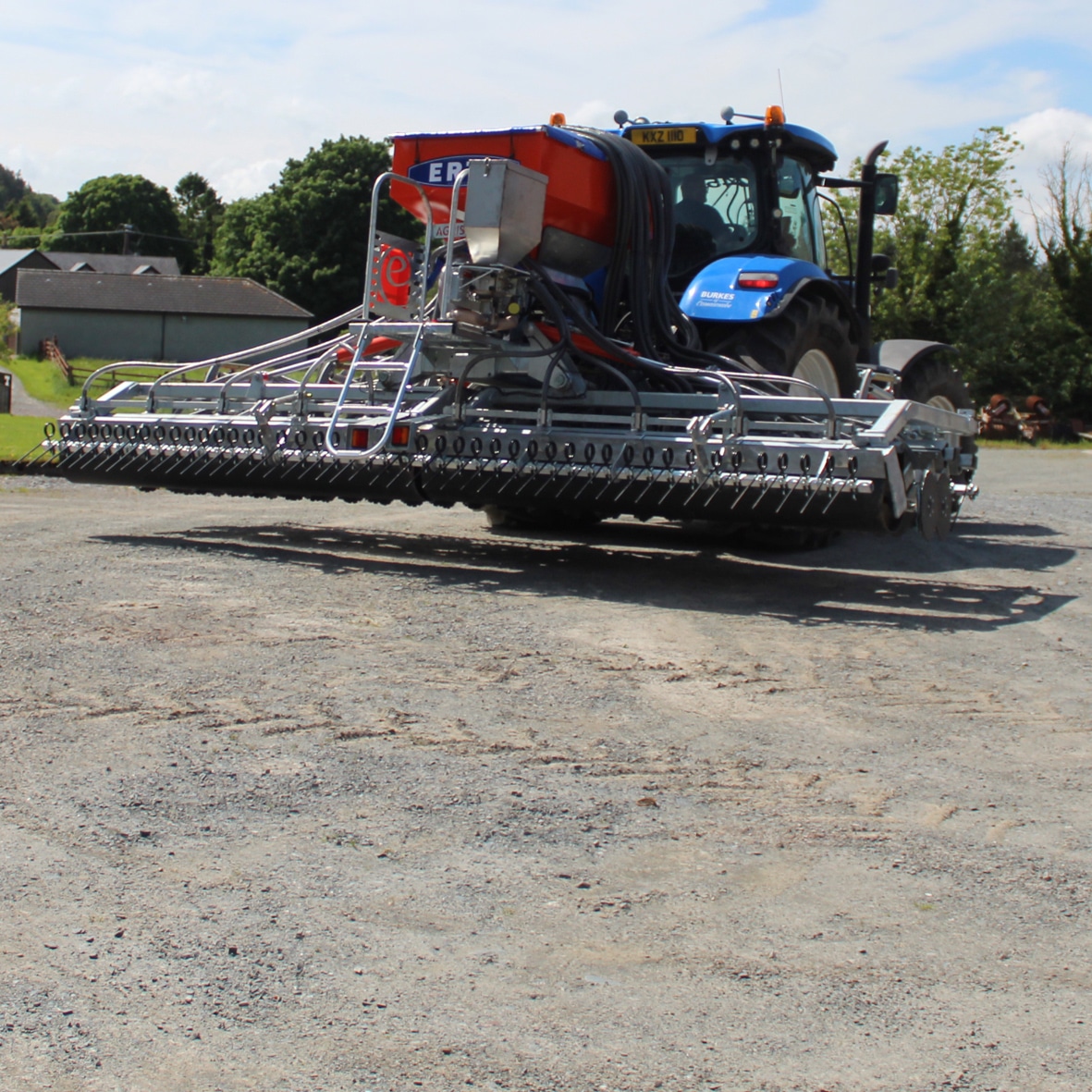

Agriseeder™ Folding
The Agriseeder Folding models have all the features of the Pro Series but with E-drive as standard. The 7″ E-drive touchscreen displays all the functions of the drill and features a built-in camera to monitor seed distribution. Rams lock up and down to secure the drill when in transit, reducing a drill in the field width of 4m or 6m to a transport width of 2.8m.
Benefits
- Fertility retained at surface
- Less moisture loss
- Firm surface with minimal disturbance
- Does not lift stones or drag trash
- Delivers in hard and soft conditions
- Exceptional performance wet and dry
- Superb depth control on undulating ground
- Faster and cheaper sward turnaround
- Low hp requirement; tractors from 100hp
- Slot created is a natural moisture trap
- Slot created shelters the young seedling
- Tilth created in slot
Crops
- Clover
- Cover Crops
- Companion Crops
- Grass
- Setaside Mixes
- Cereals
- Fodder Crops
- Microfert
- Slug Pellets
-
- Grass
-
- Fodder Crops
-
- Cereals
Models
| Model | 4.0m Folding | 6.0m Folding |
|---|---|---|
| HP | 140+hp | 250+hp |
| Row Width | 125 | 125 |
| Coulters | 32 | 48 |
| Weight | 2950kg | 4000kg |
| Transport Width | 2.8m | 2.8m |
| Grass | Yes | Yes |
| Small Seeds | Yes | Yes |
| Cereals | Yes | Yes |
Agriseeder™ Folding Options
Hoppers
Steel Hopper: 1000L
Secondary Hopper
Designed in house by Erth for precision delivery or small quantities. Stainless steel construction, can handle practically any compound (grass, microfert, pellets, peas). Smooth delivery with the ability to sow really low rates. Output can be either fed to the venturi in “down the slot” applications or broadcast on the surface.
For example:
- Grass down the slot; clover on the surface.
- Peas down the slot; clover on the surface.
- Fodder crops down the slot; slug pellets on the surface.
- Seed and fertilizer down the slot.
Hydraulic Front Harrow
Where the drill is to be used in conjunction with conventional tillage or with reekie harrow to reduce repression from chemical. Use in conjunction with rear harrow for slot and scratch seeding combinations.
Rear Harrow
Toplink adjustable. Helps dust more fines into the slot and helps neutralise chemical repression.
Rollers
Tramlines
Standard Kverneland dump to tank solenoid values and Kverneland control box.
Muckscreen
For working in damper conditions and paddocks that have just been grazed.
